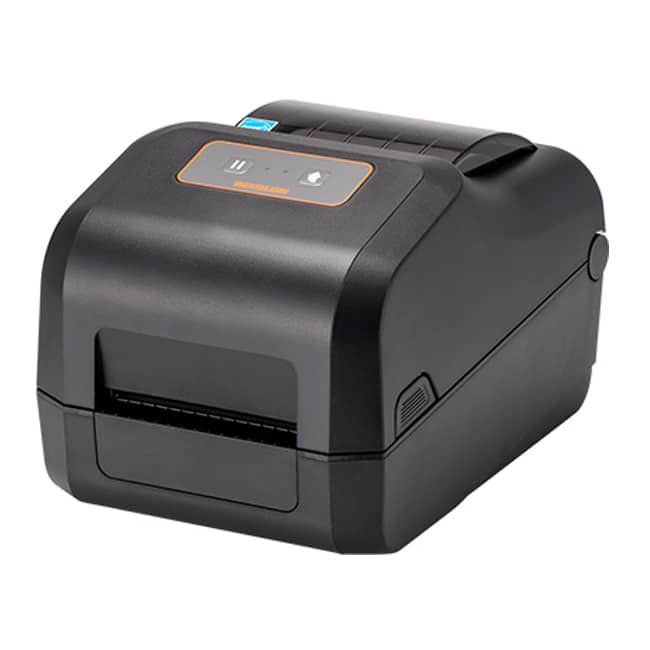

BIXOLON XD5-40tk
4-Inch Thermal Transfer Desktop Label Printer
Product Overview
The BIXOLON XD5-40t is a mid-tier 4-inch (118 mm) thermal transfer desktop label printer designed for reliable, high-quality label printing in retail, manufacturing, logistics, healthcare, and other professional environments.
With a compact and robust desktop design, the XD5-40t delivers print speeds of up to 152 mm/sec (6 ips) at 203 dpi and supports both thermal transfer and direct thermal printing. It is well suited for asset marking, price management, product identification, inventory labelling, and manufacturing applications.
Key Features
- 4-inch (118 mm) desktop label printer
- Thermal transfer and direct thermal printing
- Print speeds up to 152 mm/sec (6 ips)
- 203 dpi print resolution
- Maximum print width of 108 mm
- Supports multiple media types including gap, black mark, notch, continuous and fan-fold media
- Tool-less design for easier maintenance
- Supports ½-inch and 1-inch core ribbons
- Ribbon capacity up to 300 m
- Supports wax, wax/resin and resin ribbons
- Optional mono LCD display
- Optional peeler and auto-cutter
- Wired and wireless interface options
- Designed for robust, professional label printing
Technical Specifications
| Specification | Details |
|---|---|
| Brand | BIXOLON |
| Model | XD5-40t |
| Product Type | Desktop Label Printer |
| Printing Method | Thermal Transfer / Direct Thermal |
| Print Resolution | 203 dpi |
| Print Speed | Up to 152 mm/sec (6 ips) |
| Maximum Print Width | 108 mm |
| Media Width | 15–118 mm |
| Maximum Roll Diameter | 127 mm |
| Media Thickness | 0.06–0.20 mm |
| Media Types | Gap, Black Mark, Notch, Continuous, Fan-Fold |
| Ribbon Types | Wax, Wax/Resin, Resin |
| Maximum Ribbon Length | 300 m |
| Ribbon Width | 33–110 mm |
| Ribbon Core | 0.5-inch / 1-inch |
| Media Core | 1–1.5 inches |
| Maximum Print Length | Up to 1,000 mm |
| Optional Display | FSTN LCD, 200 × 100 pixels |
| Memory | 64 MB SDRAM / 128 MB Flash |
| Power Input | AC 100–240V, 50/60Hz |
| Operating Temperature | 0–40°C |
Specifications are based primarily on BIXOLON’s official product documentation and user manual.
Available Options
The XD5-40t can be configured with different connectivity and workflow options, including USB, Serial, Ethernet, WLAN and Bluetooth depending on the configuration. Optional accessories include an FSTN LCD display, peeler, auto-cutter and external paper supply.
Ideal For
- Retail Stores & Supermarkets
- Manufacturing Companies
- Transport & Logistics
- Warehouses & Distribution Centres
- Healthcare Facilities
- Asset Management
- Inventory & Product Labelling
- Price Labelling
- Manufacturing Identification
